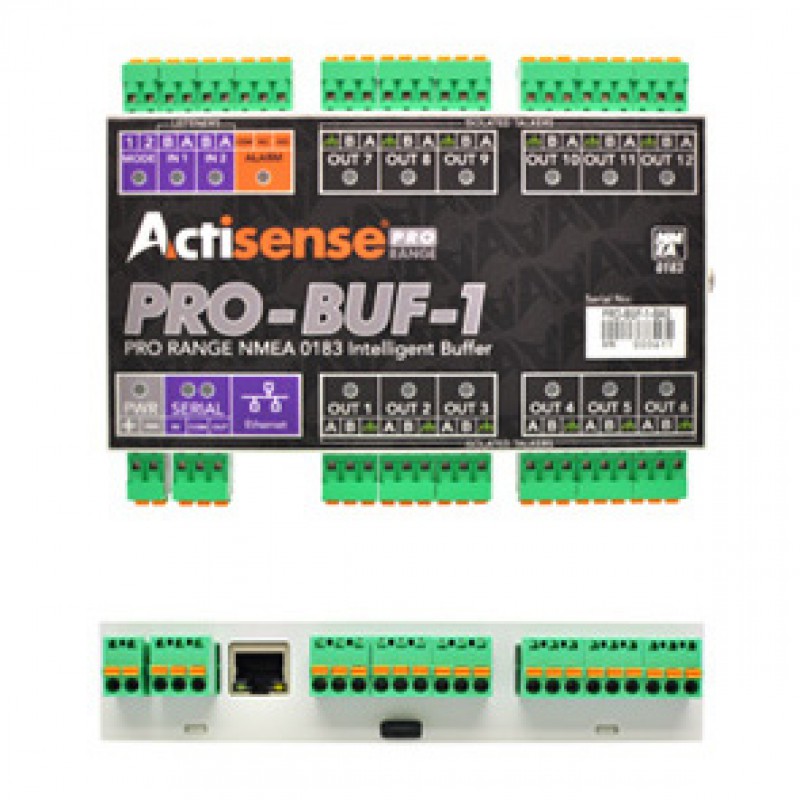

PRO-BUF-1 NMEA0183 Buffer

Standard configuration with pluggable screw terminals

Adaptable NMEA 0183 Buffer with a variety of operating modes. Provides two OPTO-isolated inputs and twelve ISO-Drive™ outputs, keeping devices safe from hazardous ground loops.

The PRO-BUF-1 is reliable, robust and provides isolation on all inputs and outputs as standard. With two NMEA 0183 inputs, twelve NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-BUF-1 is a perfect solution for larger leisure vessels and commercial shipping.

The PRO-BUF-1 is designed to suit the majority of NMEA 0183 systems and ready to go ‘out of the box’ by simply hard-wiring the two mode inputs as required. The manually configurable basic modes of operation include variations of buffer modes, autoswitch modes, and combine modes. For all other configurations, leaving the mode inputs floating selects the ‘User Configuration Mode’. The web browser based configuration tool allows full customisation of the PRO-BUF-1, and is compatible across all popular Operating Systems. The PRO-BUF-1 supports a direct Ethernet connection to a PC without the need for a specialised Ethernet crossover cable.

Helpful LEDs indicate power, data in, data out and the alarm status to aid diagnostics.
